A compact projector driven by sustainability that provides affordable flexibility in installation and use.

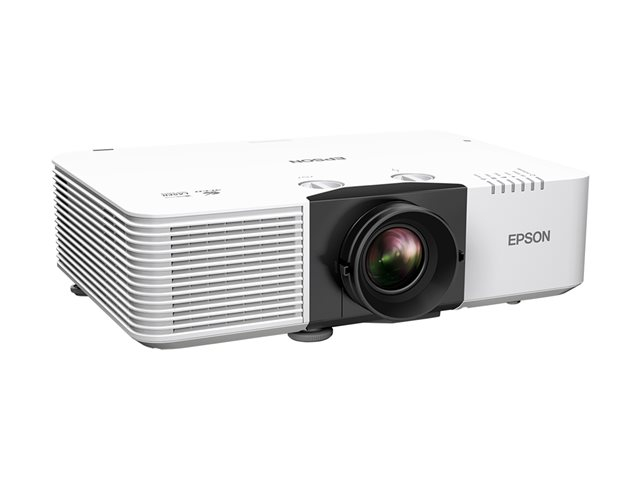

The EB-L690U offers WUXGA resolution with 6,500 lumens brightness, HDR and advanced mounting features. Guarantees up to 30,000 hours of maintenance-free projection in eco mode.
Featuring a center-shift lens display, 1.6x zoom and 10W speakers, it is ideal for professional applications.
| Technology | 3LCD Technology, RGB liquid crystal shutter |
| Brightness, lumens | 6500 / 4500 lumens (normal/eco) |
| Contrast | 5000000 |
| Div. capability | Full HD 1920x1200 (WUXGA) |
| Screen size, inch | 50" ~ 500" |
| Format Support | 16:10 |
| Sound | 10W |
| Operating Noise, dB | 25 dB (Normal), 32 dB (Eco) |
| Zoom Ratio | Manual, Factor: 1 - 1.6 |
| Short Throw | no (Throw Ratio: 1.35 - 2.20:1) |
| Wireless projection option | Wi-Fi, LAN IEEE 802.11a/b/g/n/ac, built-in wireless LAN unit |
| Inputs | USB Type A x 2, USB Type B, Screen Mirroring (Miracast), HDMI in x 2, Stereo mini in x 2, HDBaseT, VGA in x2, VGA out |
| Outputs | HDMI out, Stereo mini jack audio out |
| HDMI | HDMI ARC, HDMI (HDCP 2.3) |
| Lamp, W | Laser |
| Lamp life, h | 20,000 Hours (Standard) / 30,000 Hours (ECO) |
| Dimensions (W, D, H), cm | 44.0 x 34.0 x 13.8 |
| Weight, kg | 8.2 kg |
| Color | White |
| Others | Security (Kensington lock), Arc Correction, Automatic keystone correction, Horizontal and vertical keystone correction; Video Color Modes: Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection |
| Warranty | 36 months |
