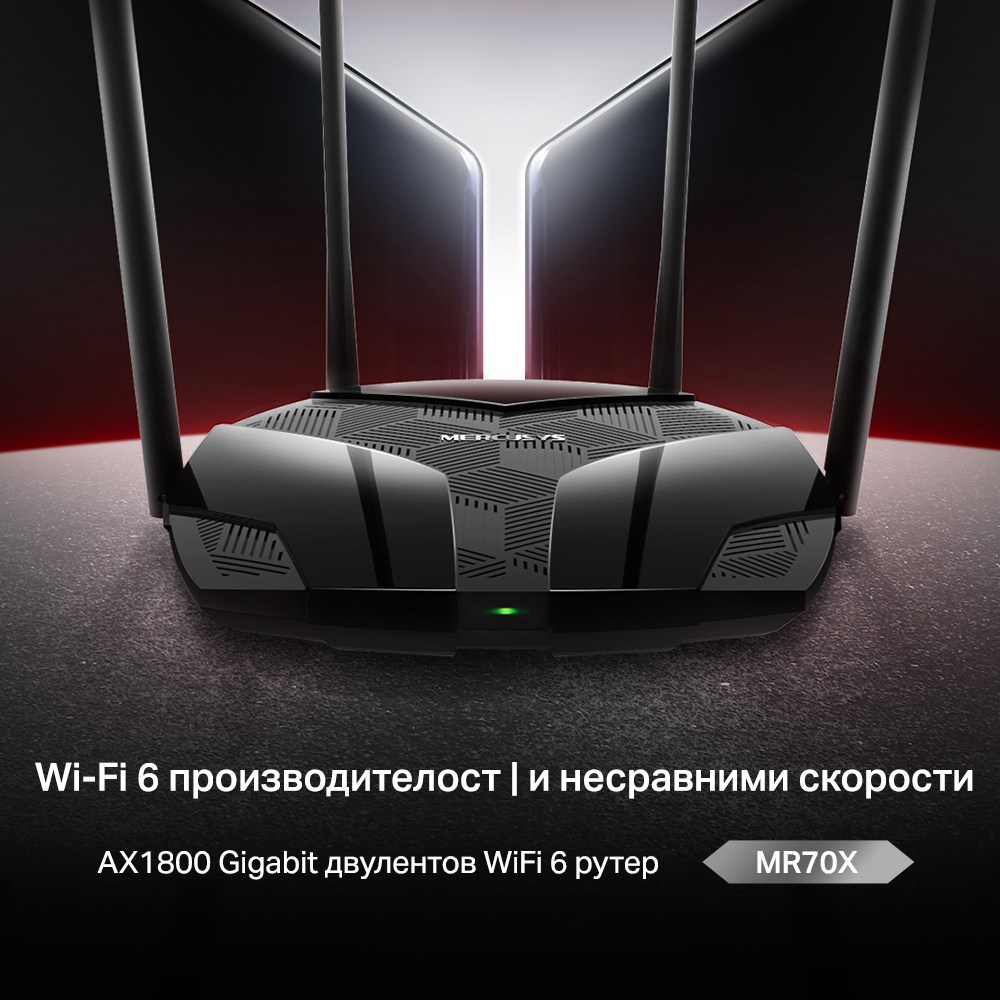

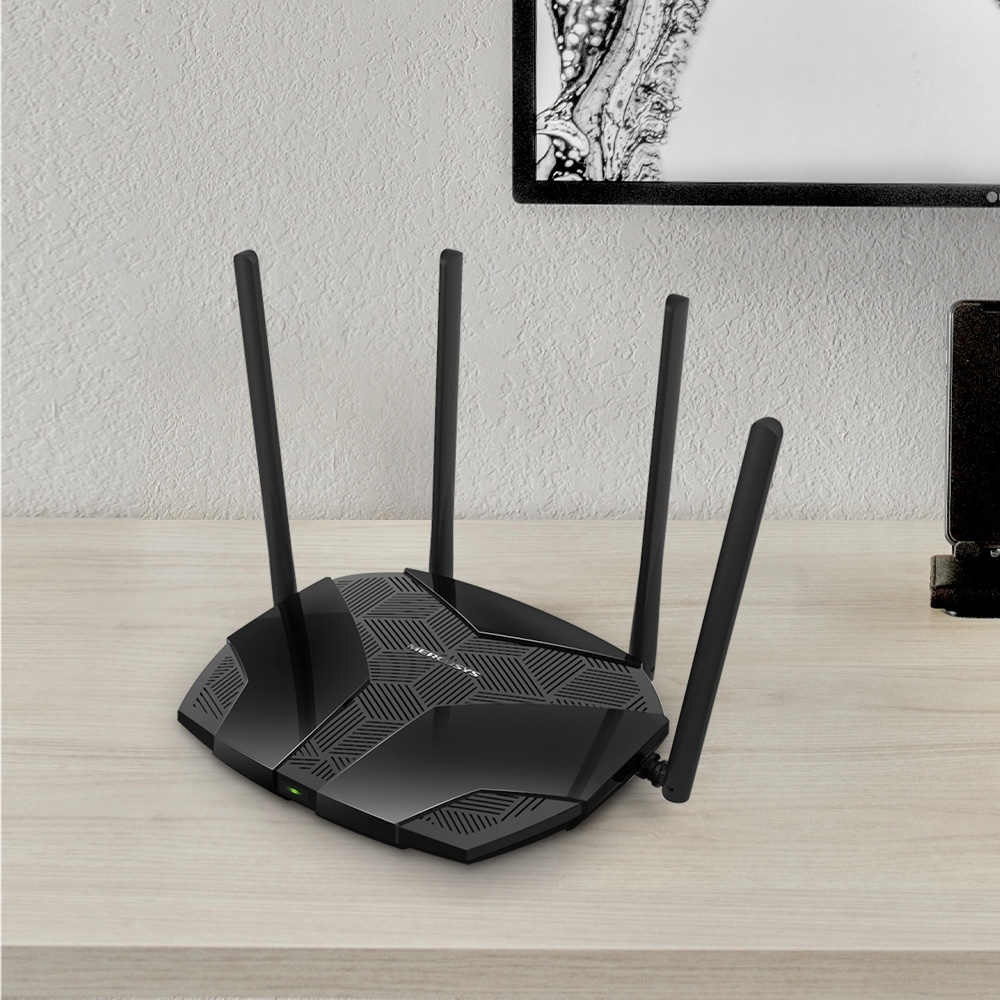

Mercusys MR70X AX1800 Dual Band Gigabit Wi-Fi 6 Router

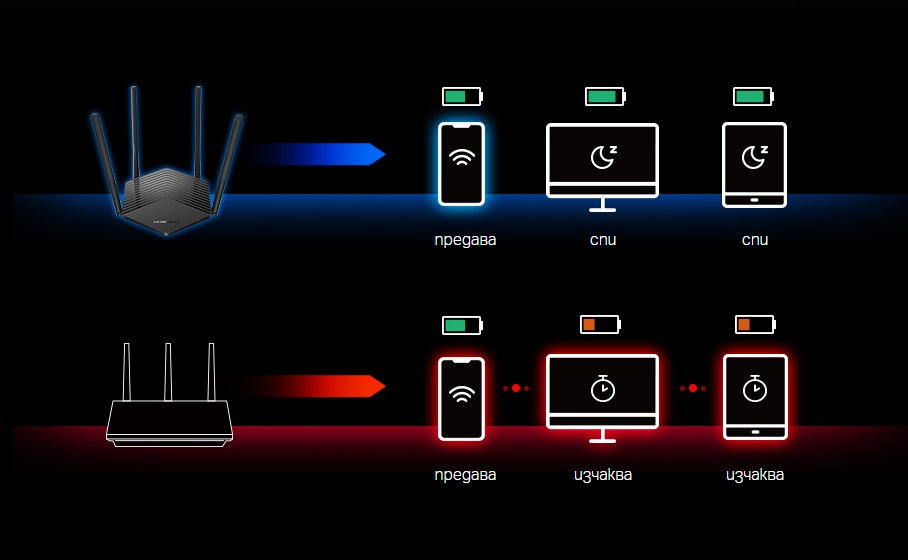

The growing number of wireless and smart home devices are testing the limits of previous WiFi standards. The latest WiFi 6 standard implements advanced technology designed to increase average data throughput per user in dense user environments, provide more simultaneous connections, extend WiFi range and support reliable data transmissions, meeting the demand for a high-performance wireless experience .
Product features:
Wireless Standards | Compatible with Wi-Fi standards 802.11ax/ac/a/b/g/n |
---|---|

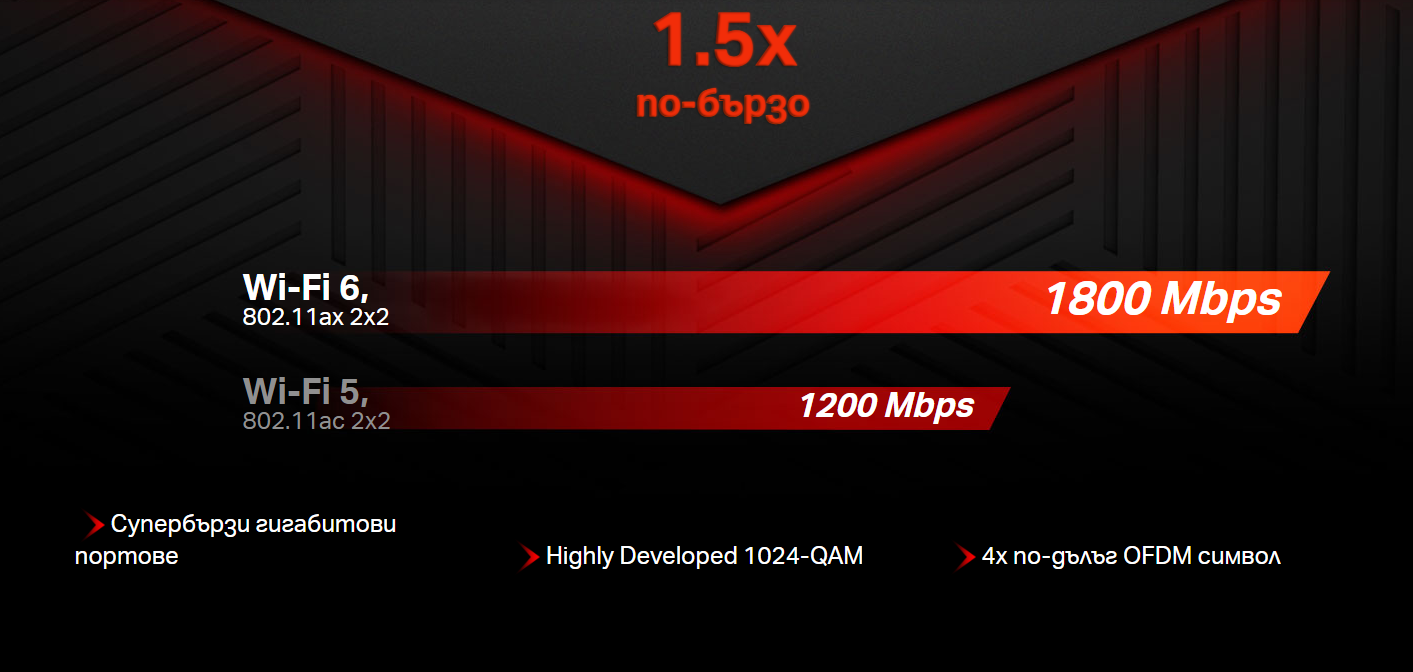

Signal level | 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
Reception sensitivity | 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT40 MCS7:-74dBm 11n HT20 MCS7:-77dBm 11a 6Mbps:-94dBm 11a 54Mbps:-76dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS8:-68dBm 11ac VHT80 MCS8:-65dBm |
Transmit Power | 2.4 GHz < 20dBm (EIRP) 5 GHz < 23dBm (EIRP) |
Wireless Security | WEP WPA / WPA2-Personal WPA2 / WPA3-Personal |
Wireless features | Enable / disable wireless radio, WMM |
WAN type | Dynamic IP / Static IP / PPPoE / L2TP / PPTP |
Management | Access Control Local Government Remote Control |
DHCP | Server, DHCP client list |
NAT Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
Security Firewall | SPI firewall, binding of IP and MAC addresses |
Guest Network | 2.4 GHz guest network, 5 GHz guest network |
VPN Passthrough | OpenVPN, PPTP are supported |
Dimensions (WxDxH) | 8.2 × 6.8 x 1.6 inches (208.8 x 171.6 x 41.7 mm) |
Interfaces | 1× Gigabit WAN port + 3× Gigabit LAN port |
Button | Reset button / WPS |
Antenna type | 4× 5 dBi Fixed omnidirectional antennas |
Package Contents | • AX1800 Wi-Fi 6 Router MR70X • Power adapter • Quick Installation Guide • RJ45 Ethernet cable |
Environment | • Operating Temperature: 0°C~40°C (32°F~104°F) • Operating humidity: 10%~90% non-condensing • Storage humidity: 5%~90% non-condensing |
Warranty | 36 months |
