- AC1300 dual-band Wi-Fi - speeds up to 400 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band

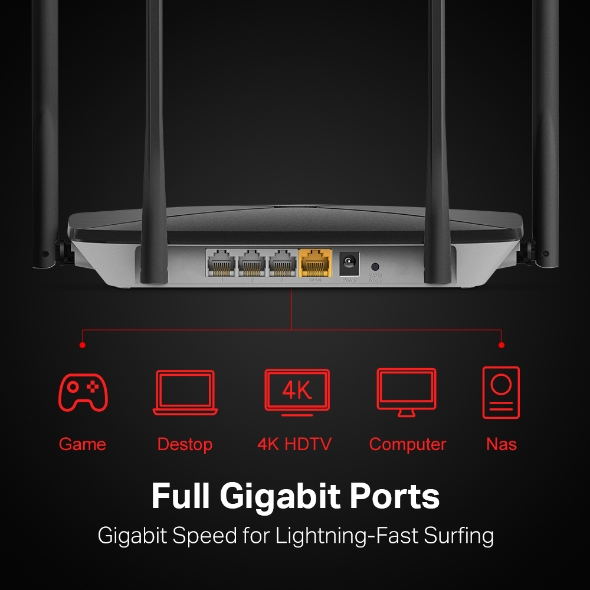

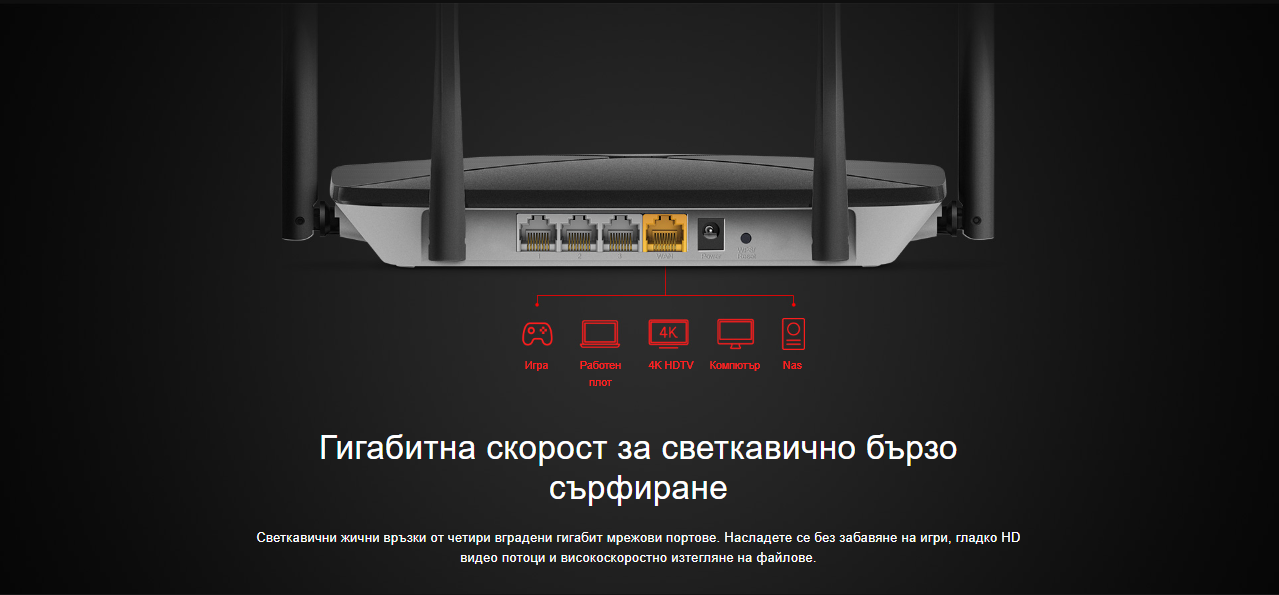

- Gigabit ports - lightning-fast connections for wired devices, including game consoles, STBs, smart TVs and more
- Share up to 60 devices - access the Internet for multiple streams at once
- 4 external antennas - great wireless coverage throughout your home

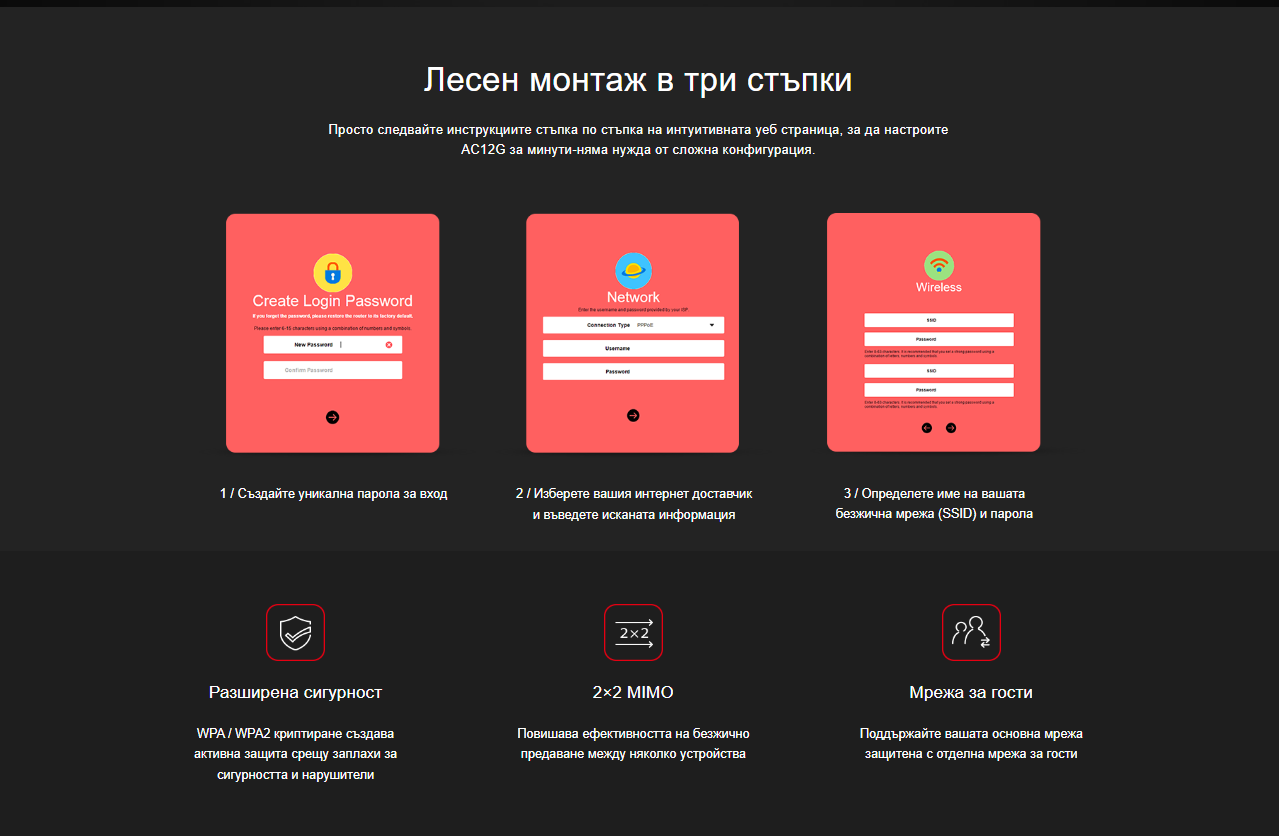

- Easy installation - intuitive web interface will guide you through the setup process in minutes
Product features:
Wireless standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
---|---|
Frequency | EU: 2.4-2.5GHz, 5.17-5.25GHz US: 2.4-2.5GHz, 5.17-5.25GHz, 5.73-5.83GHz |
Signal Level | 400 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
Reception sensitivity | 5GHz - 11a 6M: -96dBm - 11a 54M: -77dBm - 11ac 20M MCS8: -72dBm - 11ac 40M MCS9: -67dBm - 11ac 80M MCS9: -63dBm 2.4GHz - 11g 6M: -97dBm - 11g 54M: -80dBm - 11n 20M MCS7: -78dBm - 11n 40M MCS7: -75dBm |
Transmit Power | <20dBm (EIRP) |
Wireless Security | WPA-PSK / WPA2-PSK / WPA3-Personal |
Wireless Features | Turn On / Off Wireless Radio, Wireless Statistics |
Management | Access Control Local Government Remote control |
Port Forwarding | Virtual Server, UPnP, DMZ |
Security Firewall | IP and MAC Address Binding |
Guest Network | 2.4GHz guest network, 5GHz guest network |
Dimensions (WxDxH) | 8.7 × 5.5 x 1.3 in (222 x 140 x 32 mm) |

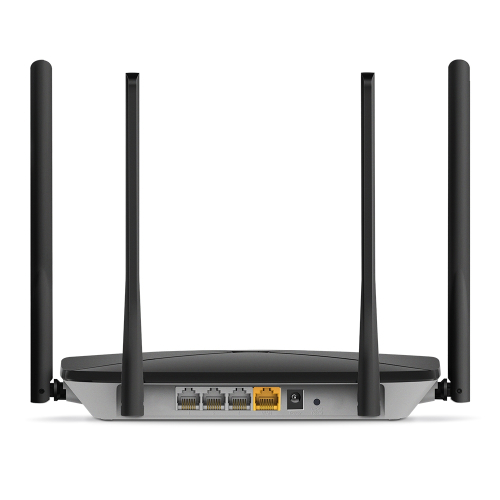

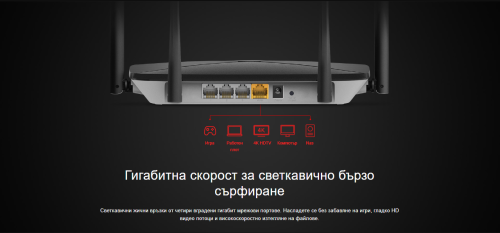

Interfaces | 1 Gigabit WAN port 3 Gigabit LAN ports |
Button | WPS / Reset Button |
External power supply | 12V/1A |
Antenna type | 4 fixed non-directional antennas |
Package Contents | - AC1300 Wireless Dual Band Gigabit Router (AC12G) - Adapter - Ethernet cable - Quick Installation Guide |
Environment | - Operating temperature: 0 ° C ~ 40 ° With (32 ° F ~ 104 ° F) - Storage temperature: -40 ° With ~ 70 ° With (-40 ° F ~ 158 ° F) - Operating humidity: 10% ~ 90% non-condensing - Storage humidity: 5% ~ 90% non-condensing |
Warranty | 36 months |
