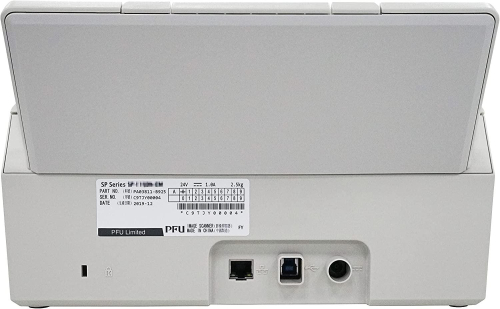

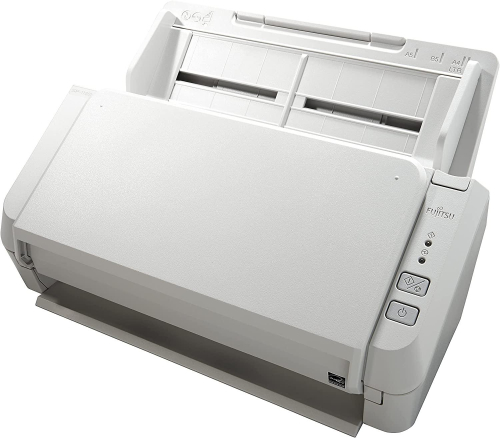

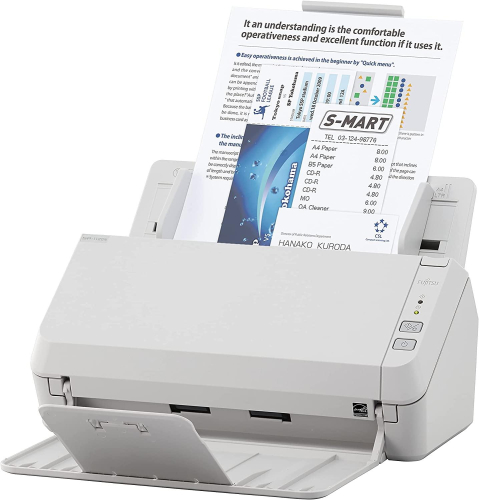

Ricoh SP-1125N Scanner , 4939761311628

Brand: RICOH
Product code: 2004939761311628

With a compact, network-ready design, this device delivers high performance as an entry-level model for any business.

- Scan speed up to 25 pages per minute
- 50-page automatic document feeder (ADF).
- Supports USB 3.2 and Ethernet wired network connections
- Compact size: 298 x 135 x 133 mm
- Integrated TWAIN & ISIS driver connectivity – works with hundreds of scanning software solutions

The SP-1125N delivers high-value performance as an entry-level model for your business with scan speeds of 25 ppm/50 ipm (A4 portrait, color, 200 / 300 dpi), a 50-sheet ADF capacity, and the ability to scan a variety of documents.

Easy to operate and use
Operation is also simple with just two buttons to press, scan/stop and power. The minimalist design reduces the risk of human error.

Reliable scanning
The SP-1125N delivers stable scanning at a speed of 25 ppm that doesn't drop even when scanning at 300 dpi resolution and an ADF that holds up to 50 sheets at a time. This helps ensure stable and stress-free office operations to maximize accuracy and efficiency.

Accurate document feeding capability
This scanner handles a variety of paper types from thin to thick, as well as plastic cards, to meet all your scanning needs. Operators don't have to worry about unexpected interruptions, rescans or damaged documents.

Product features:

Scanner type	ADF (Automatic Document Feeder), Duplex
Scan speed^1 (A4 Portrait) (Color^2/Grayscale^2/Black and white^3)	Simplex: 25 ppm (200/300 dpi) Duplex: 50 ipm (200/300 dpi)
Image sensor type	Single-line CMOS-CIS x 2 (Front x 1, Rear x 1)
Background Colors	White
Document Size Maximum	216 x 355.6 mm (8.5 x 14 inches)
Document Size Minimum	52 x 74 mm (2.0 x 2.9 inches)
Document Size Long Page Scanning^*6	3048 mm (120 inches)
Paper Weight (Thickness) Paper	50 to 209 g/m² (13.4 to 56 lb)^*7
Paper Weight (Thickness) Plastic Card	0.76 mm (0.0299 inches) or less^*8
ADF Capacity^910	50 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume^*11	4,000 sheets
Multifeed Detection	Overlap Detection (Ultrasonic Sensor)
USB Interface^1213	USB 3.2 Gen 1x1 / USB 2.0 / USB 1.1
Ethernet Interface	10BASE-T,100BASE-TX,1000BASE-T
Power Requirements	AC 100 to 240 V ±10 %
Operating Mode	18 W or less
Power Consumption Power Saving Mode	2 W or less
Power Consumption power Auto standby (off)	0.3 W or less
Operating environment Temperature	5 to 35 °C (41 to 95 °F)
Operating environment Relative humidity	20 to 80% (non-condensing)
Environmental compliance	ENERGY STAR, RoHS
Dimensions^*14 (W x D x H)	298 x 135 x 133 mm (11.7 x 5.3 x 5.2 in)
Weight	2.5 kg (5.5 lb)
Supported Operating System	Windows 11^15, Windows 10^15, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS^16, Linux (Ubuntu)^16
Software/Drivers	PaperStream IP for SP Series (TWAIN/TWAIN x64/ISIS™),WIA Driver^17, Image Scanner Driver for macOS (ICA)^1718, Image Scanner Driver for Linux (SANE)^1718, PaperStream Capture, PaperStream ClickScan^18, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap^18, Scanner Central Administration Server, ABBYY™ FineReader Sprint™^19, Network Setting Tool for SP Series, SP Series Online Update
Image Processing Features	Multi-Image Output, Auto Color Detection, Auto Page Size Detection, Blank Page Detection, Dynamic Threshold (iDTC), Extended DTC, SDTC, Error Diffusion, Flicker, De-Screen, Accent, Dropout Color (None/Red/Green/Blue/White/Saturation/Custom), sRGB Output, Split Image, Skew, Edge Filler, Vertical Banding Reduction, Digital Endorser, Background Pattern Removal, Character Thickness, Character Enlargement, Character Extraction
Included Items	AC Adapter, USB Cable, Setup DVD-ROM
Warranty	12 months

1. Scanning speeds may vary depending on the system environment. The values shown are the evaluation results under the following environment:
- Windows 10/CPU: Intel Core™ i3-10105 3.7GHz/Memory: 8GB/Storage: SSD
2. The speeds listed are using JPEG compression.
3. The speeds listed are using TIFF CCITT Group 4 compression.
4. The selectable maximum resolution may vary depending on the length of the scanned document.
5. There may be limitations on the size of documents that can be scanned depending on the system environment when scanning at high resolution (over 600 dpi).
6. Ability to scan documents larger than Legal sizes.
Resolutions are limited to 300 dpi or less when scanning documents > 355.6 mm (14 inches) to ≦ 863 mm (34 inches), 200 dpi or less when scanning documents > 355.6 mm (14 inches) to ≦ 863 mm (34 inches), 863 mm (34 inches).
7. Thicknesses from up to 127 to 209 g/m2 (34 to 56 lb) can be scanned for A8 size (52 x 74 mm / 2.1 x 2.9 inches).
8. Compatible with ISO7810 ID-1 type. Capable of scanning embossed cards with a total thickness of 1.24 mm (0.049 in) or less.
9. Maximum capacity depends on paper weight and may vary.
10. Ability to set additional documents during scanning.
11. Figures are calculated using scan speeds and typical hours of scanner use and are not intended to guarantee daily volume or unit durability.
12. Scanning speed is slowed when using USB 1.1.
13. When using USB, the device must be connected to a USB hub connected to a computer port. If using USB 3.2 Gen 1x1 (USB 3.0) / USB 2.0, a compatible USB port and hub are required.
14. Excludes ADF paper chute and stacker.
15. SP Series scanners do not work with Windows 11 and 10 ARM-based computers.
16. Supports USB connections only.
17. Functions equivalent to those offered by PaperStream IP may not be available with the macOS/Linux image scanner driver or WIA driver.
18. Refer to the SP Series support site for driver/software downloads and a full list of all supported operating system versions.
19. Windows Server OS operations are not supported.
