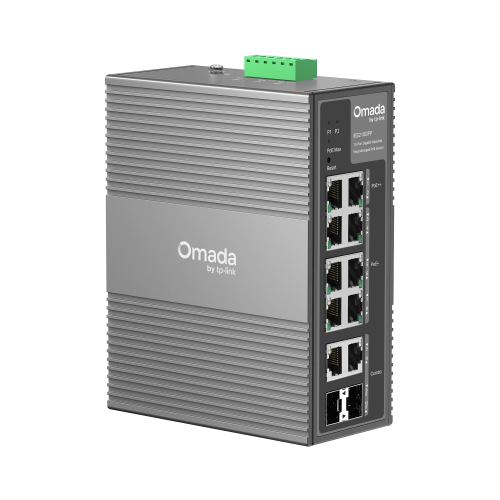

TP-Link Omada IES210GPP 10-Port Gigabit Industrial Easy-to-Manage Switch with 6 PoE+ Ports and 2 PoE++ Ports

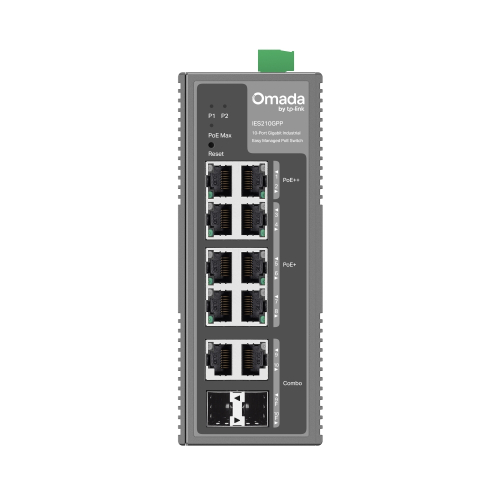

- 8× Gigabit RJ45 ports (2× PoE++, 6× PoE+)
- 2× Gigabit Combo RJ45/SFP Slots
- 240W PoE Budget* with up to 60W for each PoE++ port

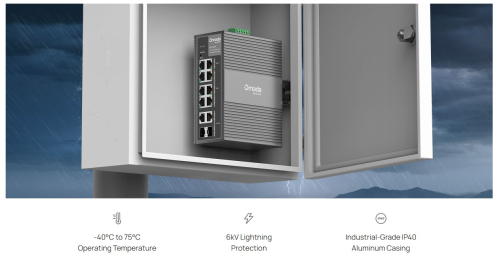

- Professional Industrial Design: -40~75°C operating temperature, 6kV lightning protection and 1+1 redundant power supply
- Rich features: up to 250m (820ft) PoE,** VLAN, QoS and STP/RSTP
- Centralized cloud management via web interface or Omada App†
- Rugged IP40 aluminum enclosure and DIN-rail / wall mounting

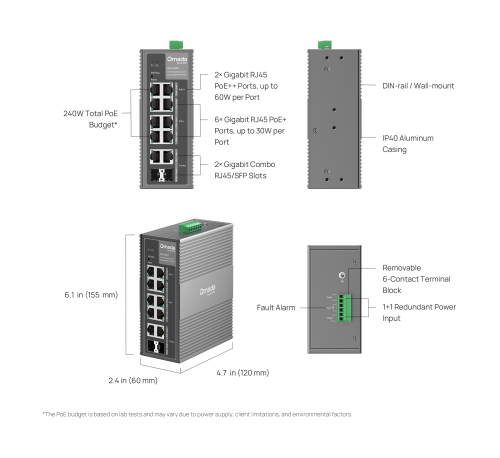

10× Gigabit ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
240W total PoE budget*
Operating temperature: -40°C to 75°C
12~57VDC 1+1 redundant power supply
IP40 industrial aluminum housing
Rich features for CCTV networks
Easy centralized management

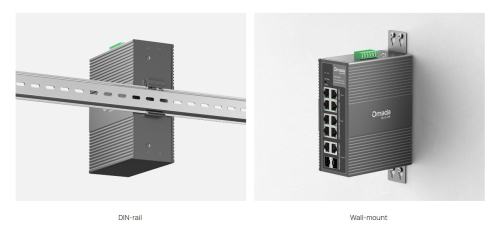

DIN-rail and wall mounting
Improved network stability and security

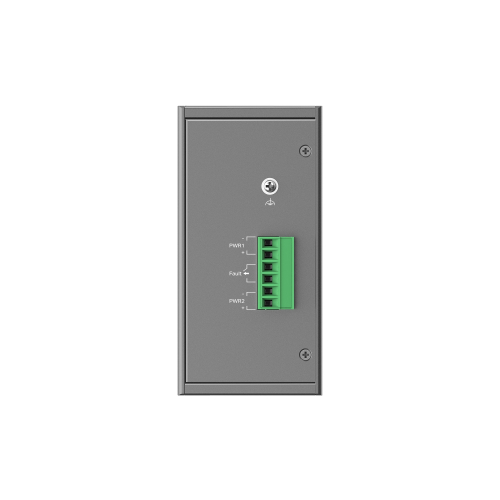

1+1 redundant power supply
Equipped with two power inputs and a wide range of 12-57V DC, ensuring continuous operation even if one power supply fails.
Real-time alarm
Connected to an external alarm, the switch will immediately report if a port is disconnected or the power is unusual.
Gigabit PoE++ ports for reliable support of high-power devices
2× Gigabit PoE++ RJ45 ports
6× Gigabit PoE+ RJ45 port
Up to 60W per PoE++ port
Total 240W PoE power*
Easy operation and maintenance with free Omada cloud management
Easy to use with Plug-and-Play design and simple configuration
Free and easy centralized management via Omada Central Essentials
Access logs and receive notifications at any time
Easy configuration of surveillance features such as 24/7 camera monitoring and automatic recovery
| Various industrial applications | Video surveillance Industrial automation Energy Smart buildings |
| Ethernet ports: | 2× 10/100/1000 Mbps PoE++ RJ45 Ports 2× Gigabit SFP/RJ45 Combo Slots 6× 10/100/1000 Mbps PoE+ RJ45 Ports |
| Mounting Type: | DIN-rail mounting Wall Mounting |
| Storage Humidity: | 5%~95% non-condensing |
| Performance: | Jumbo Frame 15 KB MAC Address Table 8K Packet Buffer Memory 4 Mbit Packet Forwarding Rate 14.88 Mpps Switching Capacity 20 Gbps |
| Power: | 12-57V 1+1 Redundant DC Power Input |
| Interface: | 2× 10/100/1000 Mbps PoE++ RJ45 Ports 2× Gigabit SFP/RJ45 Combo Slots 6× 10/100/1000 Mbps PoE+ RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Cooling: | Passive |
| Operating Humidity: | 5%~95% non-condensing |
| Operating Temperature: | -40℃~75℃ (-40℉~167℉) |

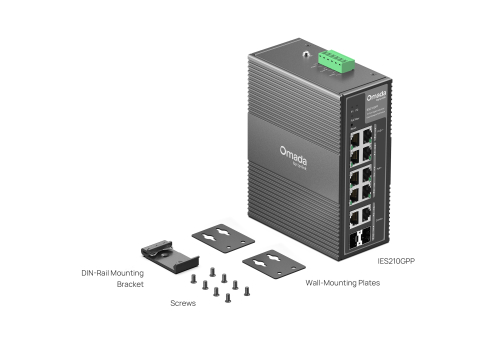

| Package Contents | IES210GPP DIN-Rail Mounting Bracket Wall Mounting Plates Manual for installation |
| Warranty: | 60 months |
